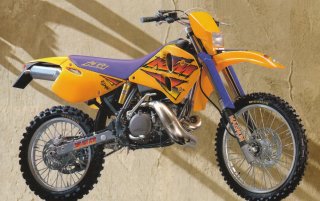

| KTM360EXC 1996 | |
| Engine Type | Liquid Cooled 2-Stroke,Single,Case Reed Induction |
| Displacement | 354ccm |
| Bore/Stroke | 78*74mm |
| Transmission | 5 gears EXC |
| Primary Ratio | 26:72 |
| Final Drive Ratio | 14:50 |
| Chain: | 5/8"*1/4" O-Ring |
| Fuel | 95 ROZ. 1:40 unleaded;US:92+Oct,32:1 |
| Fuel Capacity | 9litres/13liters;2.4US gal/3.4US gal |
| Carburetor | Keihin PWK 38mm |
| Ignition | SEM K11 Digital 12V/130W |
| Frame/subframe | Chrome-moly |
| Fork | Marzocchi Magnum 45mm |
| Wheel travel front | 300mm/11.8in |
| Shock | Ohlins rear shock |
| Wheel travel rear | 340mm/13.4in |
| Rims | Front:1.60-21" DID, Rear:2.50-18" DID |
| Front tire | 90/90-21" Michelin |
| Rear tire | 130/80-18" Michelin |
| Front brake | 260mm(10.2in) disc,Brembo double piston caliper,organic pads |
| Rear brake | 220mm(8.7in) disc,Brembo single piston caliper,organic pads |
| Steering Angle | 26.5 |
| Wheelbase | 1469+/-10mm;57.8+/-0.4in |
| Seat height | 945mm;37.2in |
| Ground clearance | 385mm;15.2in |
| Weight | 112kg;247 lbs |
