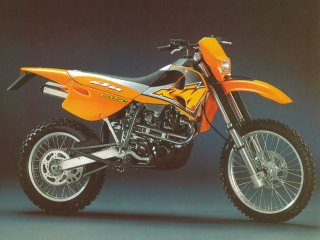

| KTM620SC 1997 Supercomp. |
|
| ENGINE | |
| Displacement | 609ccm |
| Bore/Stroke | 101*76mm |
| Transmission | 5 gears |
| Final Drive | 16:40/(15:50 comp.) |
| Chain: | 5/8"*1/4" O-Ring |
| Fuel Capacity | 9 liters |
| Fuel | 95 ROZ Eurosuper |
| Carburetor | Dell'Orto PHM 40 SD |
| Ignition | SEM K 11/60 EG-15 |
| Counter Balancer | no |
| Electric Starter | no |
| CHASSIS | |
| Mainframe/Subframe | chrome-moly-steel alminium |
| Fork | WP USD multi adjuster 20 rebound and 20 compression adj. positions |
| Shock | White Power mono-shock integral reservoir type multi adjuster 11 rebound and 7 compression adj. positions |
| Wheel travel front/rear | 285mm/320mm |
| Rims front/rear | 1.60-21" DID 2.50-18" DID |
| Tires front/rear | 90/90-21" michelin 140/80-18" michelin |
| Front brake | 260mm stainless steel disc, Brembo double piston caliper,organic pads |
| Rear brake | 220mm stainless steel disc, Brembo single piston caliper,organic pads |
| Steering Angle | 62.5 |
| Wheelbase | 1510+/-10mm |
| Seat Height | 940mm |
| Ground clearance | 350mm |
| Weight | 122kg |
| Color | orange |
| Passenger foot rest | no |
| Luggage carrier | no |
