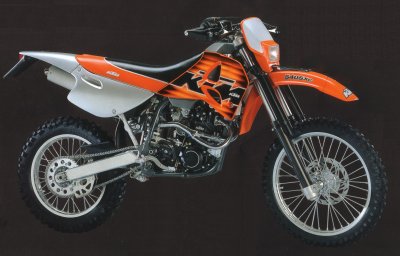

| KTM540SXC 1998 SUPERSUPERCOMP |
|
| Displacement | 538ccm |
| Bore/stroke | 95*76mm |
| Transmission | 5 speeds |
| Secondary ratio | 15:50 |
| Chain pitch | 5/8"*1/4" O-ring |
| Fuel tank capacity | 9 liters |
| Fuel | 95 ROZ Eurosuper |
| Carburetor | Dell'Orto VHSB 38 OS |
| Ignition system | SEM K 11/60 G-08 |
| Main frame | chromium-molybdenium |
| Rear end | aluminium |
| Front fork | WP-Extreme 50mm |
| Rear-wheel suspension |
WP Mono-shock |
| Front/rear suspension travel |
300mm/320mm |
| Front Rims | 1.60-21" DID |
| Rear Rims | 2.15-18" DID |
| Front Tires | 90/90-21" Bridgestone |
| Rear Tires | 140/80-18" Bridgestone |
| Front brakes | disc,260mm Brembo |
| Rear brakes | disc,220mm Brembo |
| Wheel base | 1510+/-10mm |
| Seat height | 940mm |
| Ground clearance | 350mm |
| Weight | 118kg |
