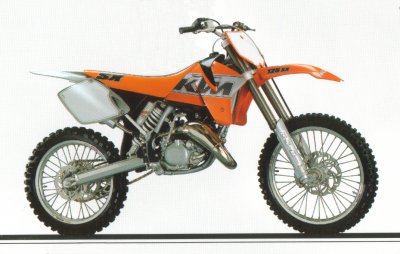

KTM125SX 2000 | |
Engine Type | 1-Cylinder, 2-stroke |
Displacement(cc) | 124.8 |
Bore(mm) | 54.25 |
Stroke(mm) | 54 |
Fuel | 95 RON 1:50 |
Valves | TVC KTC |
Crankshaft Bearing | Ball and Roller Bearing |
Conrod Bearing | Lower Needle Bearing |
Engine Lubrication | Mixture Lubrication |
Engine Oil | Shell Advance VFX4 |
Primary Ratio | 23:73 |
Clutch | Multi disc in oil bath, hydraulic |
Transmission | 6 Gears SX |
Ignition | Kokusan digital 2K-1 |
Spark Plug | NGK BR 9 EVX |
Cooling | Liquid Cooled |
Carburetor | Keihin PWK 39mm |
Frame | Chrome-Molybdenum |
Subframe | Aluminium |
Handlebar | MAGURA Aluminium tapered |
Frok | WP USD 43 MA |
Suspension travel front/rear | 295/320mm |
Rear Suspension | WP-PDS Monoshock |
Front Brake | disc 260mm |
Rear Brake | disc 220mm |
Front Tire | Bridgestone 80/100-21" |
Front Rim | 1.60-21" Excel |
Rear Tire | Bridgestone 100/90-19" |
Rear Rim | 2.15-19" Excel |
Fuel Capacity | approx. 7.5 Liters |
Final Drive | 13:50 |
Chain | 5/8" * 1/4" |
Steering Head Angle | 63 |
Wheelbase | 1461 +/- 10 mm |
Seatheight | 925mm |
Ground Clearance | 385mm |
Weight(dry) | approx. 92kg |
(データはすべて英語版カタログより)
